L44000: L44000 Skis

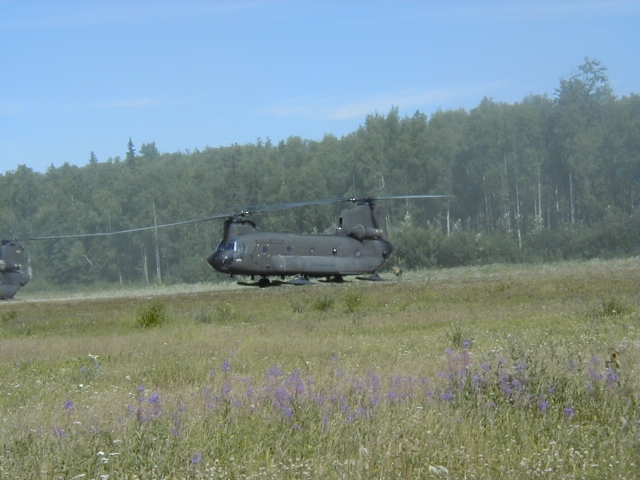

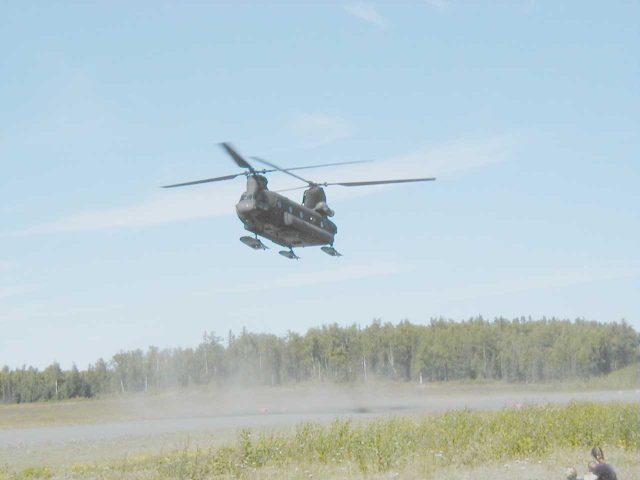

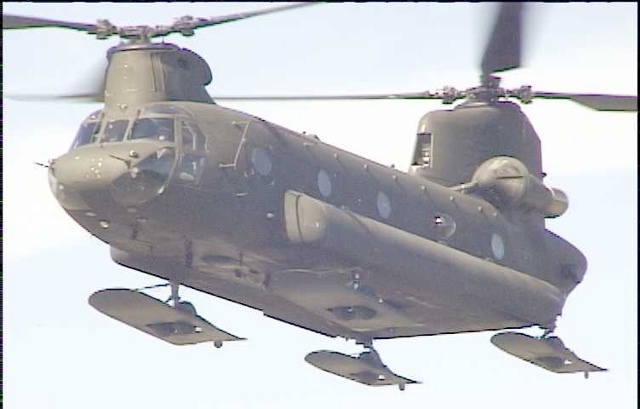

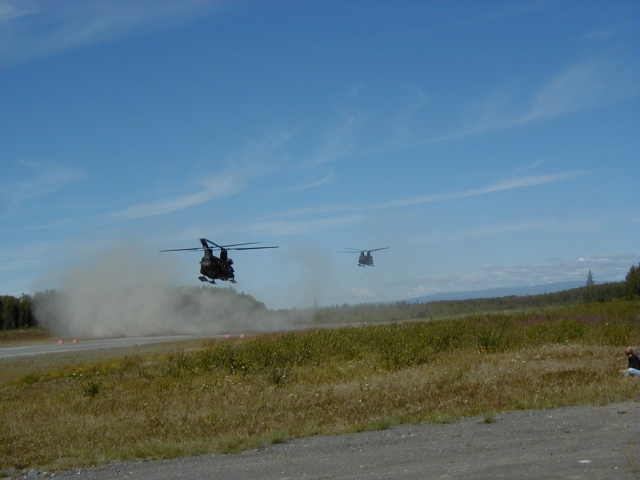

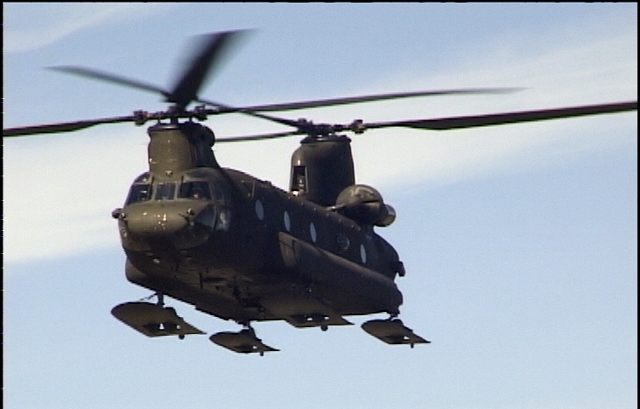

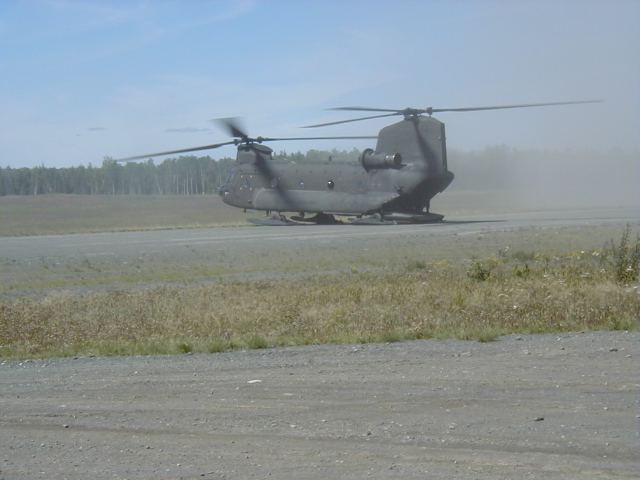

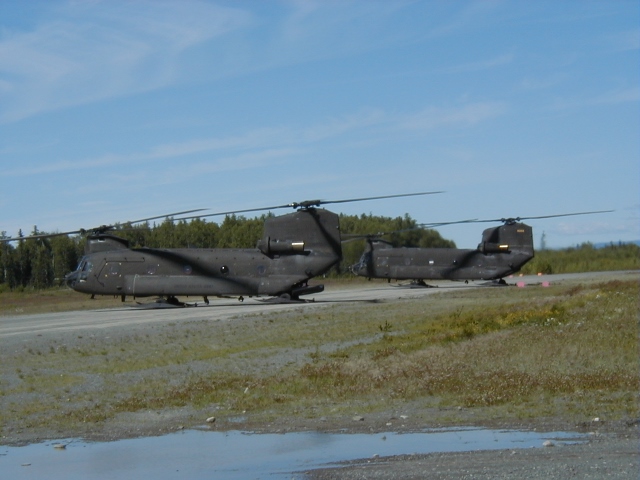

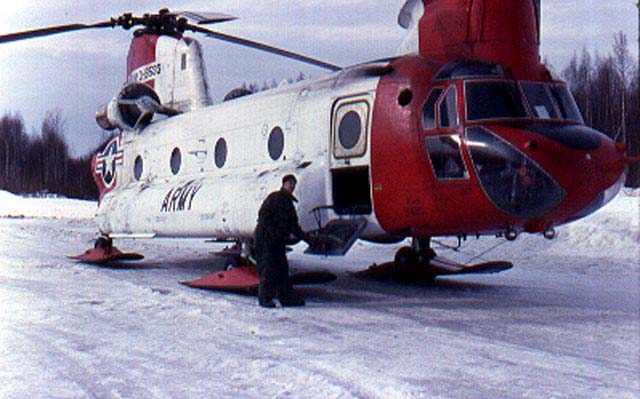

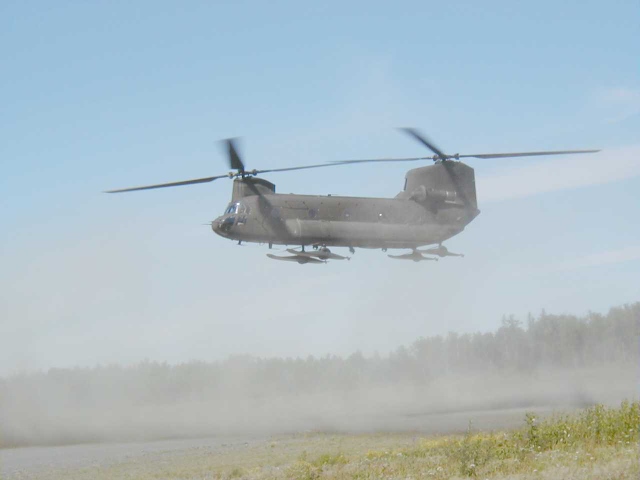

Airglas skis provide soft terrain (mud, sand, snow) support for military helicopters from the OH58 Kiowa's to the CH47 Chinook. Our light, rugged, and economical wheel penetration skis allow operations from both hard surface and unprepared terrain. Our skid skis provide solutions for soft terrain and can be configured to allow operation of hoists and ground handling equipment without removal of the skis.
FORWARD SKI -AIRGLAS P/N L44000-11
Dimensions:137” x 48”
Approx area per ski : 5800 sq. inches
Max weight per ski: 225 lbs. Area distribution: 60% ahead of axle
C.G. of ski: 9.5 inches ahead of axle
AFT SKI: AIRGLAS P/N L 44000-13
Dimensions: 114.8” x 36”
Approx area per ski: 3700 sq. inches
Max weight per ski:175 lbs.
Area distribution: 60% ahead of axle
C.G. of ski: 3 inches ahead of axle
Skis & Attaching Hardware
