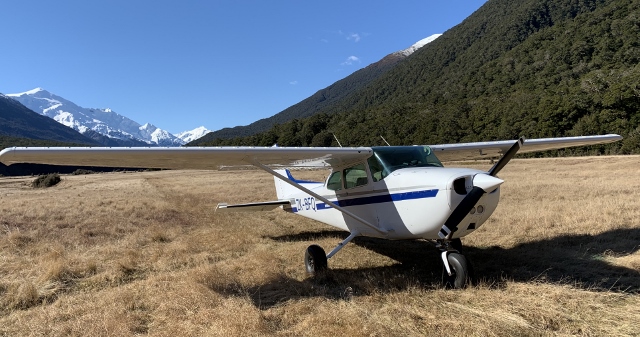

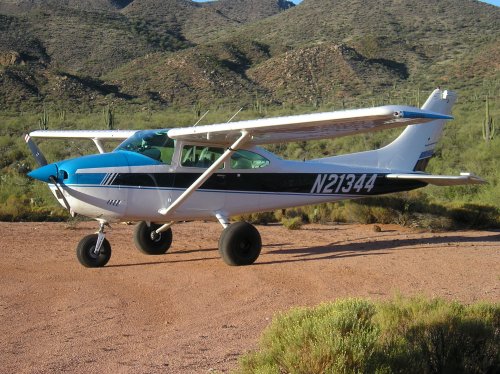

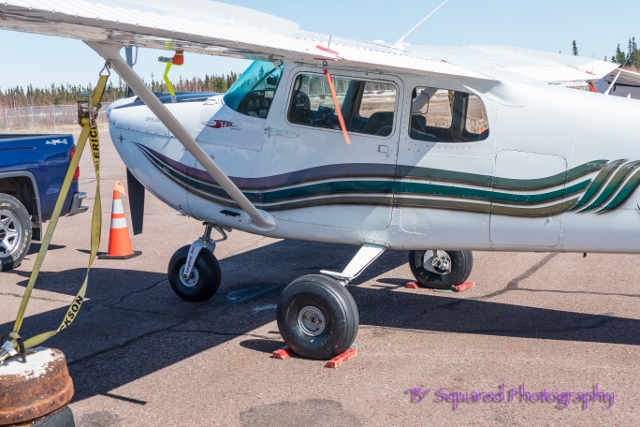

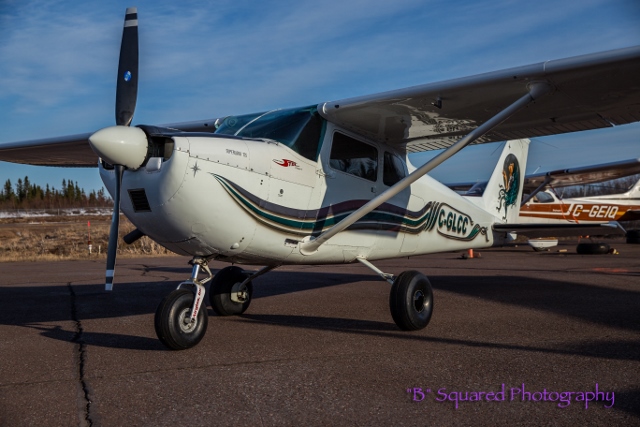

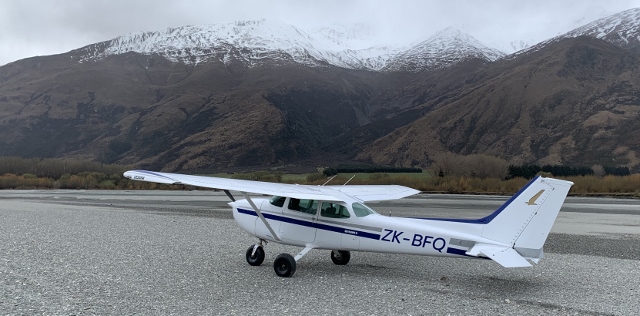

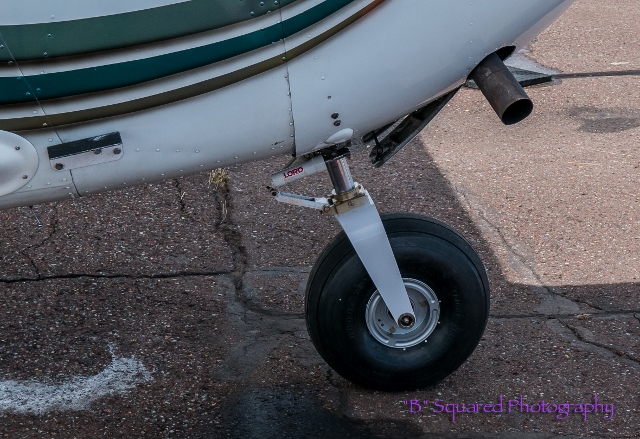

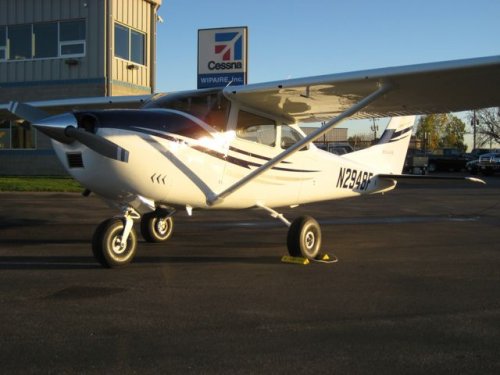

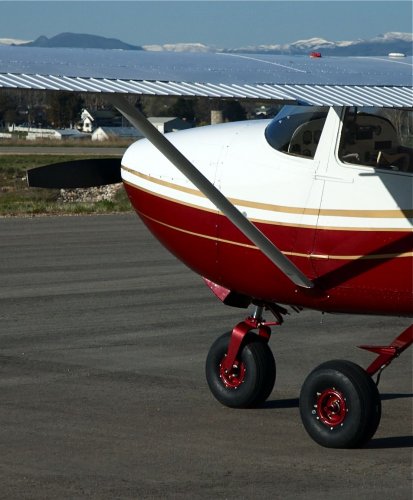

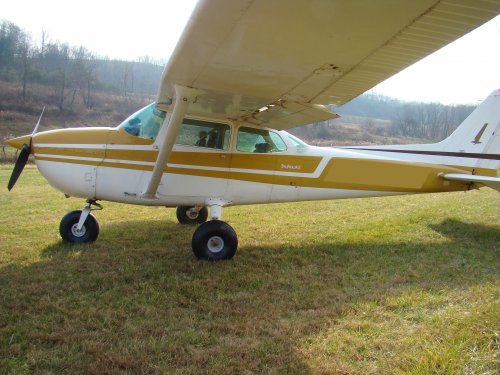

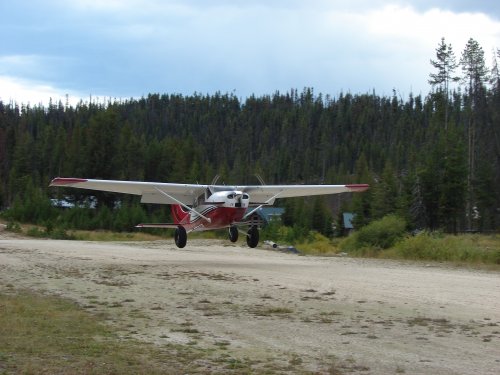

PA32-206LA: PA32-206LA Airglas Large Nose Fork - Cessna
Certified on: Cessna 150, 152, 172, 175,
182, 205, 206, 207
Tire Sizes: 6:00 x 6, 7:00 x 6, 8:00 x 6, 8:50 x 6
Specs:
Weight of Fork Kit is 13.5 lbs.
The STC approval allows tires of different sizes as identified in the appropriate flight supplement.

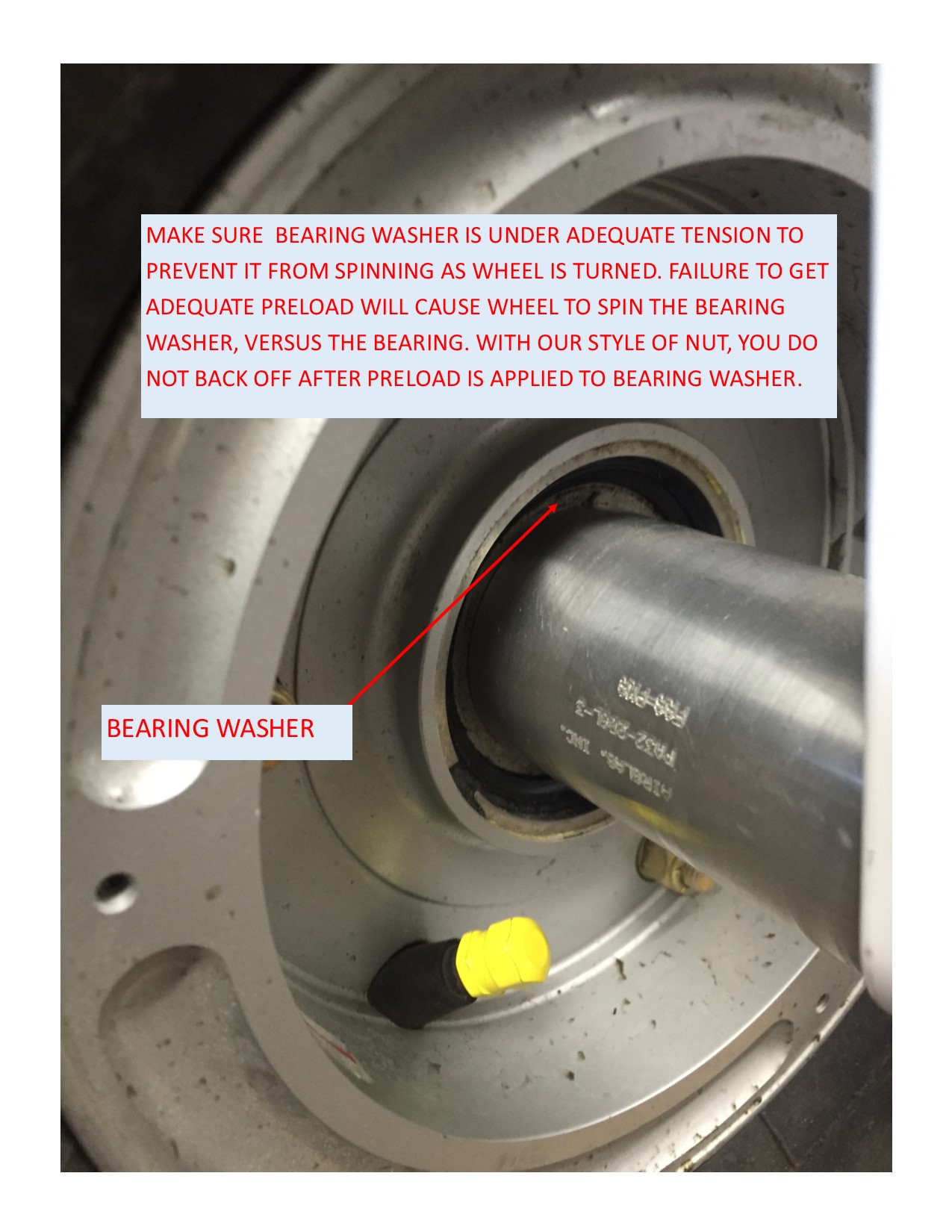

The Airglas Nose Fork requires a Cleveland 40-76a wheel (not included.)
Includes:
Airglas Nose Fork, Steel Axle and the strut block.
