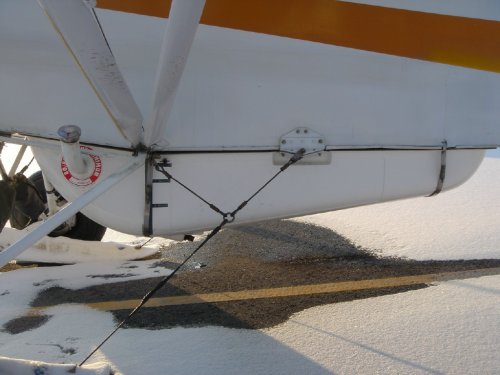

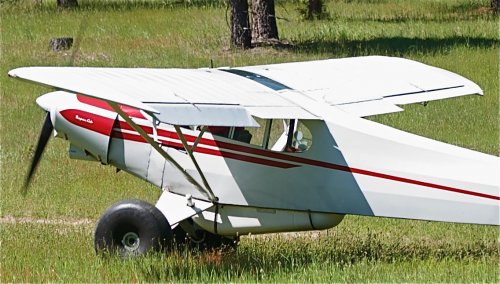

LTC18: LTC18 Cargo/Fuel Pod
The LTC-18 is made for the pilot that seems to always need a bit more gas and a bit more storage. The built in tank has a capacity of 18 gallons and the rest of the pod (57 lb limit) is for all your other storage needs. NOTE: 57 lbs Max. Baggage with full fuel. Total combined pod fuel and baggage must not exceed 165lbs.
Fuel gets transfered into the left tank from a 12 volt electric pump mounted under the rear seat. It is manually controlled by a switch mounted on the instrument panel.
The cargo portion of the pod is the same as the LC-18 with a side door 28” long and the height slopes from 9” tall in the front to 6” tall in the back. The Rear Door (15” x 7”) allows insertion of extra long items that just wont go through the side door.
Specs: Pod Capacity: 57 lbs Max. Baggage with full fuel. Total combined pod fuel and baggage must not exceed 165lbs. : 18 gal Length: 70.5 in Width: 24.75 in Height: 12.75 in Weight of kit: 33.85 lbs
Pump Kit, STC: PA-18-150 (floats, wheels, or skis),CC-18, and Stainless Steel Attachment Straps
